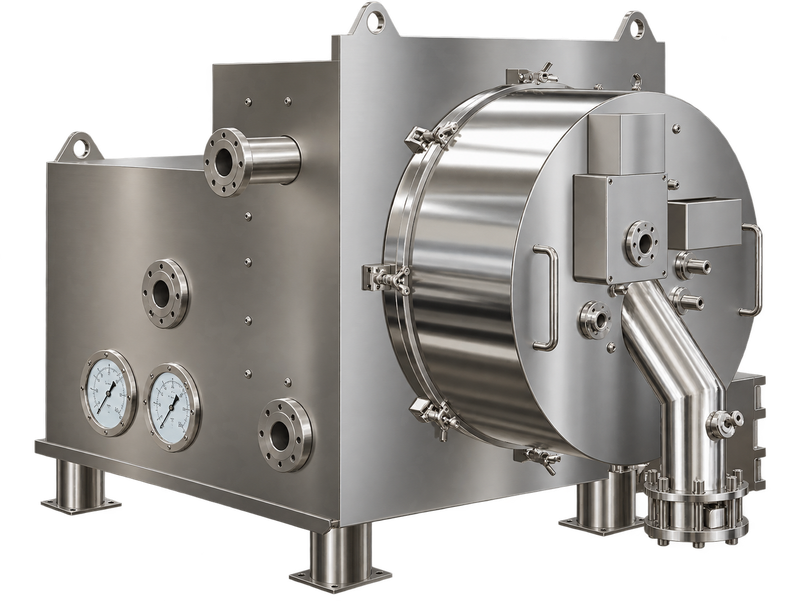

Pharma Peeler Centrifuge with Multiple Material Options

Description of Pharma Peeler Centrifuge

This kind of CF is available in Carbon Steel, Stainless Steel, Hastelloy etc MOC.

Also, Fluoropolymer Coatings like Halar (ECTFE), PVDF, ETFE, Teflon (PFA), Rubber Lined etc. can be done on contact surface.

Coating can be provided on the contact parts as well as on the exterior body (non-contact surface) for prevention from spillage and corrosive atmosphere.

Material of Construction for Pharma Peeler Centrifuge:

High speed rotating machine, classified as “High G” centrifuges.
It can be installed in Clean room area.
Full opening of lid gives complete access to entire processing area.
Ease in Maintenance, cleaning, inspection.
Low residual moisture achieved by high G effect.

Pharma Peeler Centrifuge Advantages

Robust & reliable design for high throughput & continuous operation.
Excellent design feature as per “cGMP” norms.
It can be used in Clean Room Area.
Lower residual cake moisture due to highest centrifugal forces.
horizontal peeler centrifuge provides higher centrifugal forces than vertical peeler, and increases performances and flexibility.
Due to continuous discharge of filtered liquid through perforated inner surface of rotating basket, the pressure drop, main driving force of filtration is increased across the solid cake and filter medium, as a result, the filtration rate can be boosted

Models	Basket Diameter	Basket Depth	Working Capacity under lip	Basket load (Max)@ Bulk density 1 gm/cc	Basket Revolutions	G-force	Filteration Area	Motor Power	Length	Width	Height	Empty Weight
AE PP_630	630 mm.	160 mm.	20 lts.	25 kgs.	2400 rpm.	2000 G.	0.316sq.mts.	10kW.	2000 mm.	1200 mm.	1450 mm.	2000 kgs.
AE PP_630	630 mm.	320 mm.	40 lts.	50 kgs.	2400 rpm.	2000 G.	0.633sq.mts.	15kW.	2000 mm.	1200 mm.	1450 mm.	2500 kgs.
AE PP_800	800 mm.	400 mm.	80 lts.	100 kgs.	1900 rpm.	1600 G.	1.00sq.mts.	25kW.	2540 mm.	1400 mm.	1950 mm.	4000 kgs.
AE PP_1000	1000 mm.	500 mm.	170 lts.	215 kgs.	1500 rpm.	1250 G.	1.57sq.mts.	40kW.	2540 mm.	1450 mm.	1440 mm.	7000 kgs.
AE PP - 125	1250 mm.	630 mm.	320 lts.	400 kgs.	1200 rpm.	1002 G.	2.55sq.mts.	50kW.	3370 mm.	2000 mm.	2550 mm.	10000 kgs.
