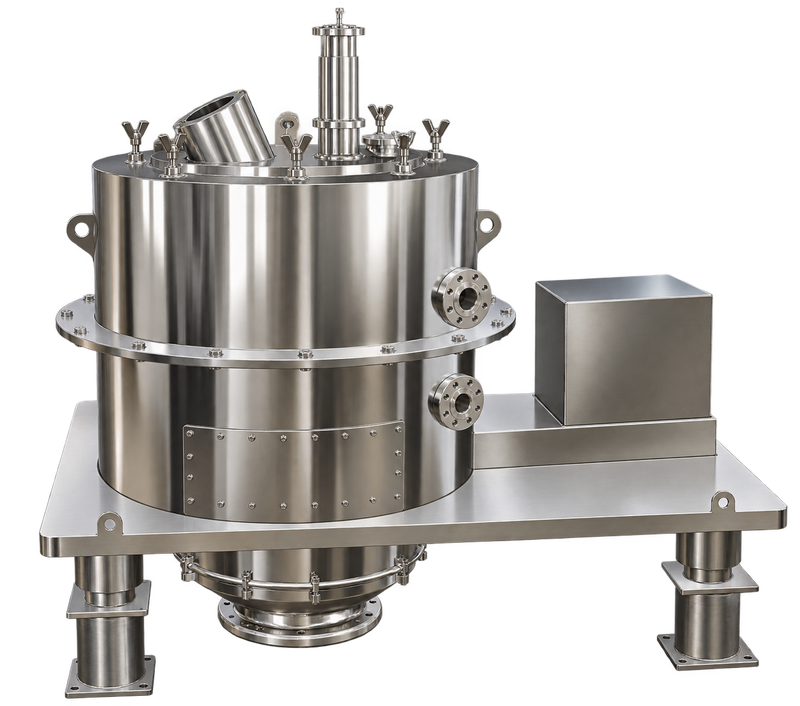

Bottom discharge is one of the unique designs for unloading of solid product from the bottom side of 4-point suspension Centrifuge which widely used in various Pharmaceutical, Chemical, Cosmetic, Food industry, Mining, Rubber, Crop Protection etc industries.
- This kind CF is available in Carbon Steel, Stainless Steel, Hastelloy etc MOC.
- Also, Fluoropolymer Coatings like Halar (ECTFE), PVDF, ETFE, Teflon (PFA), Rubber Lined etc. can be done on Contact surface.
- Coating can be provided on the contact parts as well as on the exterior body (non-contact surface) for prevention from spillage and corrosive atmosphere.
- Simple in construction.
- Easily manual removal of solid from bottom side of the equipment.
- No scrapper knife required as scrapper exist in machines.
- Residual is almost zero
- Inverter drive
- FLP Panel
- N2 Purging arrangement
- CIP arrangement
- Zero speed interlock
- Vibration tripper limit switch
- Vibration monitoring system
- FLP switch / proxy sensor
- Customize design
Models | Basket Inner Diameter | Basket Depth | Working Capacity under lip | Basket load (Max)@ Bulk density 1 gm/cc | Basket Revolutions | G-force | Filteration Area | Motor Power | Length | Width | Height | Empty Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|
AE 18"BD | 457 mm. | 250 mm. | 24 lts. | 24 kgs. | 900 rpm. | 206.2 G. | 0.43sq.mts. | 2kW. | 1050 mm. | 750 mm. | 1300 mm. | 800 kgs. |
AE 24"BD | 610 mm. | 300 mm. | 48 lts. | 48 kgs. | 900 rpm. | 275.2 G. | 0.57sq.mts. | 3kW. | 1350 mm. | 1000 mm. | 1500 mm. | 1150 kgs. |
AE 36" BD | 915 mm. | 450 mm. | 169 lts. | 169 kgs. | 900 rpm. | 412.8 G. | 1.29sq.mts. | 7.5kW. | 1800 mm. | 1250 mm. | 1900 mm. | 2750 kgs. |
AE 48" BD | 1220 mm. | 450-500 mm. | 294-327 lts. | 294-327 kgs. | 900 rpm. | 550.4 G. | 1.72-1.92sq.mts. | 15kW. | 2000 mm. | 1500 mm. | 2100 mm. | 4200 kgs. |
AE 60" BD | 1524 mm. | 450-600 mm. | 467-519 lts. | 467-519 kgs. | 800 rpm. | 543.3 G. | 2.15-2.87sq.mts. | 20kW. | 2500 mm. | 2000 mm. | 2100 mm. | 5500 kgs. |
