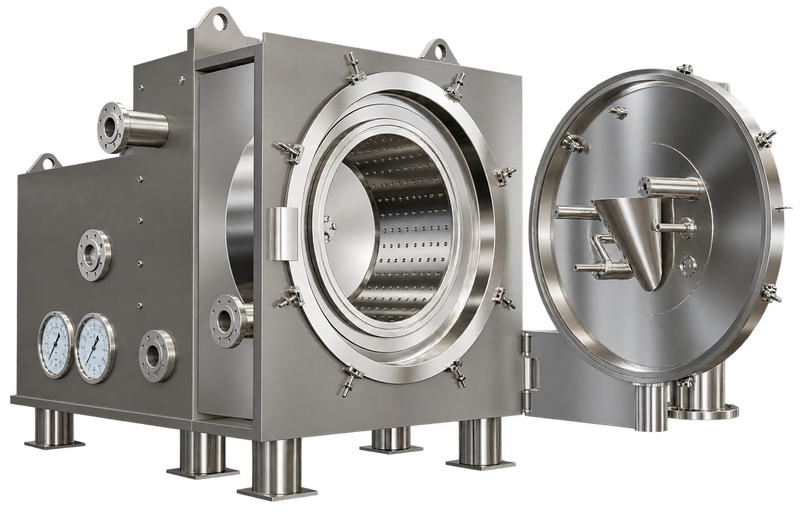

Chemical Peeler Centrifuge for Solid-Liquid Separation

Chemical Peeler Centrifuge Description

This kind of peeler operates on the principle of centrifugal force to separate the solids from the liquids. This is Horizontal type are used for batch and continues centrifuge processes. The chemical version of the horizontal peeler centrifuges is used for separating medium to large quantities of product that can be washed and then spin-dried.

These machines are fitted with a highly polished discharge chute with zero dead ends to prevent solid accumulation. The centrifuge finds wide usage in the APIs, Chemical, pharmaceutical intermediates, antibiotics, Petro-chemical and many more industries

Material of Construction for Chemical Peeler Centrifuge:

This kind of CF is available in Carbon Steel, Stainless Steel, Hastelloy etc MOC.
Also, Fluoropolymer Coatings like Halar (ECTFE), PVDF, ETFE, Teflon (PFA), Rubber Lined etc. can be done on contact surface
Coating can be provided on the contact parts as well as on the exterior body (non-contact surface) for prevention from spillage and corrosive atmosphere.

Chemical Peeler Centrifuge Advantages

Robust & reliable design for high throughput & continuous operation.
Excellent design feature as per “cGMP” norms.
It can be used in Clean Room Area.
Lower residual cake moisture due to highest centrifugal forces.
horizontal peeler centrifuge provides higher centrifugal forces than vertical peeler, and increases performances and flexibility.
Due to continuous discharge of filtered liquid through perforated inner surface of rotating basket, the pressure drop, main driving force of filtration is increased across the solid cake and filter medium, as a result, the filtration rate can be boosted

Models	Basket Diameter	Basket Depth	Working Capacity under lip	Basket load (Max)@ Bulk density 1 gm/cc	Basket Revolutions	G-force	Filteration Area	Motor Power	Length	Width	Height	Empty Weight
AE CP 630	630 mm.	320 mm.	42 lts.	42 kgs.	2400 rpm.	2021.2 G.	0.633sq.mts.	15kW.	2000 mm.	1200 mm.	1450 mm.	2500 kgs.
AE CP 800	800 mm.	400 mm.	80 lts.	100 kgs.	1900 rpm.	1600 G.	1.01sq.mts.	25-30kW.	2540 mm.	1400 mm.	1950 mm.	4000 kgs.
AE CP 1000	1000 mm.	500 mm.	170 lts.	170 kgs.	1500 rpm.	1253.3 G.	1.57sq.mts.	40kW.	2540 mm.	1450 mm.	1440 mm.	7000 kgs.
AE CP 1250	1250 mm.	630 mm.	320 lts.	400 kgs.	1200 rpm.	1002 G.	2.55sq.mts.	50kW.	3370 mm.	2000 mm.	2550 mm.	10000 kgs.
AE CP 1600	1600 mm.	800-1000 mm.	688-860 lts.	688-860 kgs.	950 rpm.	721.9 G.	4.02-5.03sq.mts.	75-100kW.	3700 mm.	2800 mm.	2900 mm.	23650 kgs.
