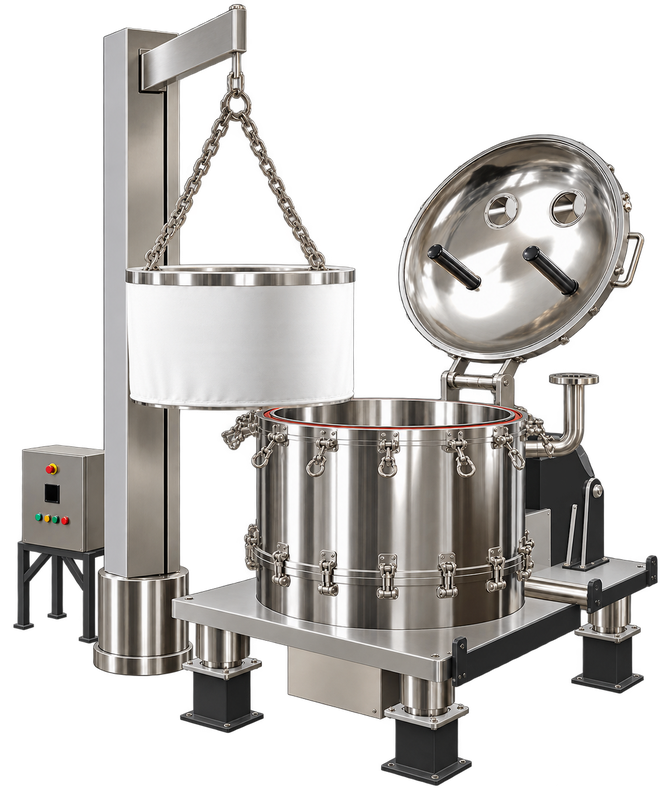

This is one of the latest improved design of Manual discharge centrifuge. In this machine solid product after removal of solvent/liquid is completely discharge by lifting the filter bag from the Top. The filter bag is lifted by Bag lifting device hence complete discharge of Solid can be achieved. This 4-point suspension system can be used in various Pharmaceutical, Chemical, R & D – Plant, Petrochemical, Cosmetic, Food industry etc industry.
- This kind CF is available in Carbon Steel, Stainless Steel, Hastelloy etc MOC.
- Also, Fluoropolymer Coatings like Halar (ECTFE), PVDF, ETFE, Teflon (PFA), Rubber Lined etc. can be done on contact surface.
- Coating can be provided on the contact parts as well as on the exterior body (non-contact surface) for prevention from spillage and corrosive atmosphere.
- Time required for Solid Cake removal is less.
- Spillage of cake on the floor is less.
- Manual contact with product can be avoided.
- Residual is almost zero
- Easy cleaning of basket.
- It can be double the production.
| Models | Basket Diameter | Basket Depth | Working Capacity under lip | Basket load (Max)@ Bulk density 1 gm/cc | Basket Revolutions | G-force | Filteration Area | Motor Power | Length | Width | Height | Empty Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AE 18" LBT | 450 mm. | 250 mm. | 23 lts. | 23 kgs. | 900 rpm. | 203 G. | 0.42sq.mts. | 2kW. | 1050 mm. | 750 mm. | 900 mm. | 800 kgs. |
| AE 24" LBT | 600 mm. | 300 mm. | 47 lts. | 47 kgs. | 900 rpm. | 271 G. | 0.57sq.mts. | 5kW. | 1250 mm. | 900 mm. | 1825 mm. | 1150 kgs. |
| AE 36" LBT | 900 mm. | 450 mm. | 159 lts. | 159 kgs. | 900 rpm. | 406 G. | 1.27sq.mts. | 7.5kW. | 1800 mm. | 1200 mm. | 2550 mm. | 3200 kgs. |
| AE 48" LBT | 1200 mm. | 450-500 mm. | 285-315 lts. | 285-315 kgs. | 900 rpm. | 542 G. | 1.7-2.26sq.mts. | 15kW. | 2000 mm. | 1500 mm. | 3100 mm. | 4200 kgs. |
| AE 60" LBT | 1500 mm. | 450-600 mm. | 442-590 lts. | 442-590 kgs. | 800 rpm. | 535 G. | 2.12-2.83sq.mts. | 20kW. | 2500 mm. | 2000 mm. | 3500 mm. | 5700 kgs. |
